SKEDCO
Sked Stretcher System
Sked Stretcher System Complete |
This is the state of the art in
rescue litters. If you can only have one type of rescue stretcher, this is the
one you should have. A rescue and patient transport system that is compact,
lightweight and versatile. It performs all of the functions of a traditional
Stokes or basket type stretcher and much more. It is made of a low density
polyethylene plastic which melts at 480 Fahrenheit(249C) and withstands the
cold to a frigid -120 Fahrenheit(-84C). In addition the Sked Stretcher’s
design and flexibility makes it ideal for confined space rescue in areas such
as: storage tanks, ship’s hatches, mine shafts, manholes, caves, ventilation
ducts and other difficult locations. Thanks to the thick plastic which makes up
the stretcher it is a breeze to drag, slide or move on all surfaces. It easily
slides over dirt, gravel, rocks, carpets, underbrush or even a concrete floor.
You can slide the patient and stretcher down stairs or ladders, saving wear and tear on your back. It can be
quickly rigged for either horizontal or vertical (head first) lowering or
hoisting with rope systems. For patients with spinal or cervical injuries the
Sked Stretcher will accent any immobilization device currently on the market.
The Sked O.S.S. Backboard will fit inside the backpack along with the
stretcher, giving you a complete backboard and stretcher in one package (the
O.S.S. is found on page 7 of this catalog). The Sked will also
accept mast trousers. The Sked is transparent to x-rays and its .1”(2.8mm)
thickness makes it easy to put under a patient and even easier to remove with a
minimum of patient movement. When time is critical and a life is at stake,
don’t settle for less! The weight of the stretcher only is 11 lbs.(5kg). The
weight of entire basic system (catalog numbers SK201 through SK207) is only 16
lbs.(7.27kg). Made in
Catalog
#SK200-O Sked Basic System Complete - Orange
Catalog
#SK200-G Sked Basic System Complete - Dk. Green
Catalog
# SK200C-OR Sked Basic Rescue System (Upgraded with Cobra Buckles) – Orange
Catalog
# SK200C-GR Sked Basic Rescue System (Upgraded with Cobra Buckles) - Green
Catalog
#SK201 Sked Stretcher Only
Catalog
#SK202 Backpack
Catalog
#SK400 Sked Pediatric Stretcher Complete
Catalog
#SK403 Sked Pediatric Stretcher Only
Catalog
#SK404 Backpack for SK400
Catalog
#SK203 Horizontal Lifting Straps (set of two)
Catalog
#SK204 Tow Strap
Catalog
#SK205 Carrying Handles (set of 4)
Catalog #SK206/7 Vertical
Lifting Kit, Consisting of 30’(9.1m) of 3/8”(10mm) PMI Rope and One 21001 Steel Locking D Carabiner
Catalog #SK208C Sked-Evac
Aluminum Side Release Buckle Conversion Kit

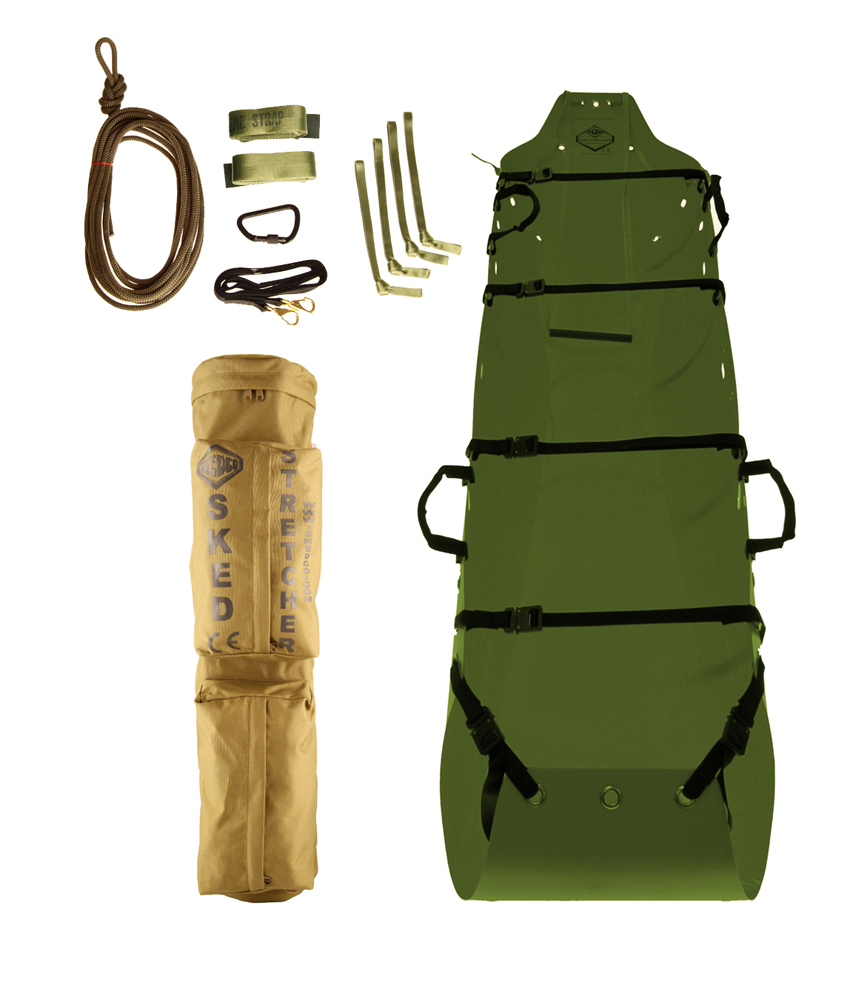

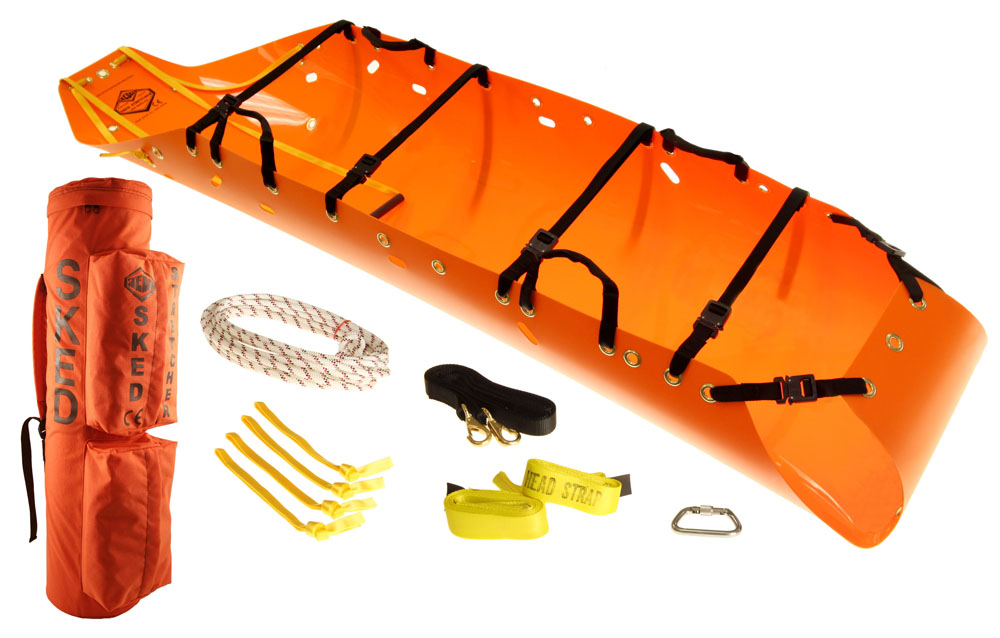

Sked Basic Rescue System (Upgraded with Cobra
Buckles)
The original and still the best solution for confined space, high angle or
technical rescue, and traditional land based applications, the Sked stretcher
is a revolutionary design which provides outstanding patient protection and
security. The Sked comes equipped for horizontal hoisting by helicopter or
vertical hoisting in caves or industrial confined spaces. When the patient is
packaged the stretcher becomes rigid. The durable plastic provides protection
for the patient while allowing extrication through the most demanding confined
spaces. The stretcher is rolled for storage in a tough cordura backpack which
is included with the system. The system ships at 19 lbs and comes complete for
most applications. Available in International Orange or O.D. Green for
military, S.W.A.T. and other tactical situations. Made in
SK-200-OR International
SK-200-GR O.D. Green

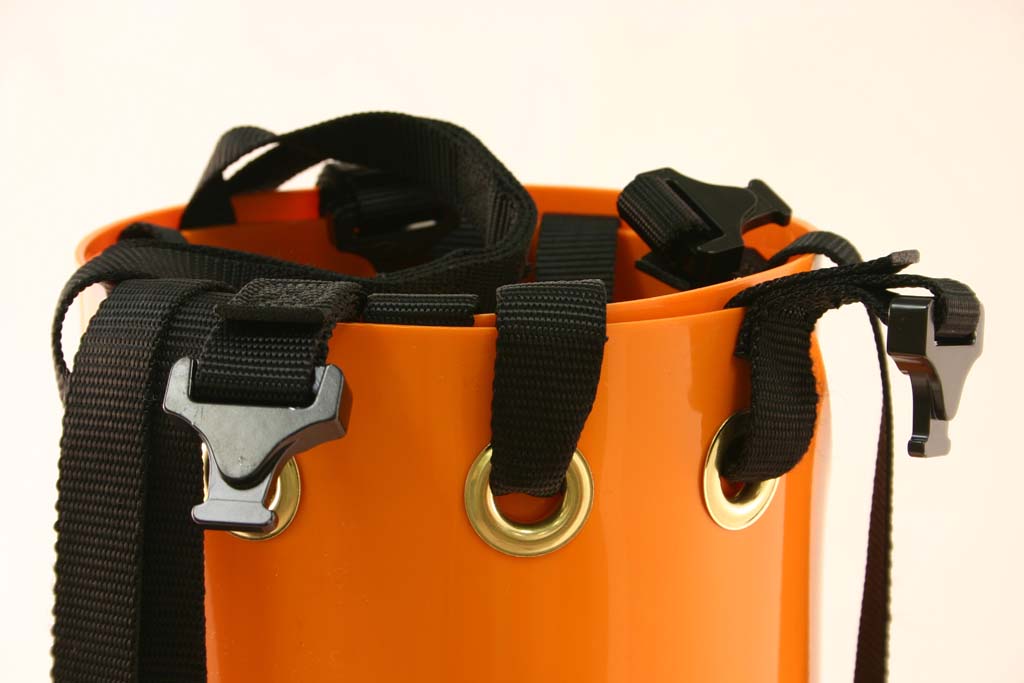

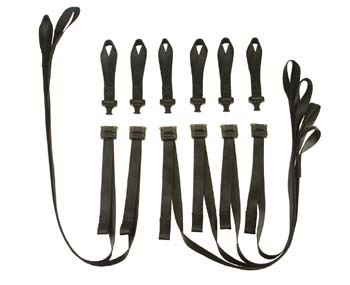

Sked-Evac Aluminum Side Release Buckle Conversion Kit
(Cobra Buckles)
The challenge of finding a quick connect/quick release buckle for the
Sked® has finally been met. Skedco now has the Austrian made Skedco/Cobra side
release buckles that are dependable and strong enough to meet the needs of
securing a patient into a Sked® stretcher without the danger of breakage. These
buckles are rated at 3 thousand pounds. They are durable and easy to use. When
they are under tension they are very hard to release thus accidental release
under tension is not an issue. With these buckles you will no longer have to
weave the webbing through the buckles when packaging a patient. Patient
packaging is often done in about half of the time as when using the original
steel buckles. Because of the cost of the buckles they are offered as a special
order on new Sked®s and as a retrofit kit for Sked®s you already have. You do,
however, get everything you pay for with these buckles. They dramatically speed
up the patient packaging because of the ease of using them.
SK-208C

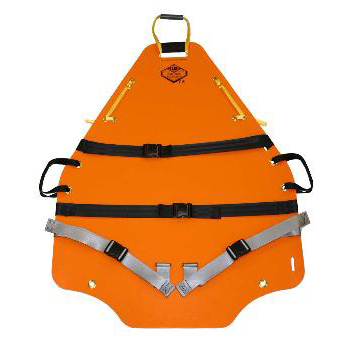

Half-Sked Patient Drag
The Half-Sked is made of the same durable material as the Sked stretcher,
but is only half as long. The patient is secured in the Half-Sked with sewn-in
two inch webbing straps with fastex style double adjustable buckles, and
patients can be extricated from the tightest of confined spaces. Unlike the
Sked® stretcher, the Half-Sked allows the patient to bend at the hips, allowing
greater flexibility to turn corners. The Half-Sked should not be used as a
hoisting or immobilization device, but for cost effective extrication from the
most demanding confined spaces there is nothing quite like it anywhere.
Available in International
SK-220-OR International
SK-220-GR O.D. Green
The Rescue Hauler 4:1 Pulley Device
The ingenious device combines a 3-inch double pulley with a cam. The
rope can move in only one direction when the cam is engaged. It allows you to
raise a load by pulling on the tail end of the rope, releasing it, and getting
another grip. The cam can be released manually by pulling on the attached cord.
This allows you to lower the load. The cam is guaranteed for life. There are no
hidden parts to this device, facilitating minimal maintenance and easy
inspection in the field. The pulley sheaves and body of the Rescue Hauler and
matching pulley are anodized. They will meet a 200 hour salt spray test. The
Rescue Hauler accommodates rope sizes from 3/8” (10mm) to ½” (12/5mm). Maximum
recommended load at the cam is 2300lb (1,045 kg). Minimum break strength when
in use is 12,000 lb (5,455 kg). When used with a separate double pulley as
shown here, it gives you a 4:1 mechanical advantage.
SK-710 Skedco Rescue
Hauler
SK-711 Skedco 3” Double
Pulley w/o becket
SK-712 Skedco 3” Double
Pulley with becket
SK-650 Rapid Deployment Water Rescue System
·
SK-200 Sked Basic Rescue System
·
SK-605/SK606 CO2 Inflatable Float Logs (pair) –
each has an inflatable bladder covered with durable black nylon
·
SK-602 Chest Pad – attaches to the front of the packaged
patient, not allowing the patient to float face down
·
SK-601 Ballast Weight – durable bag filled with 15 pounds of
lead shot which attaches to the bottom of the Sked with hook and loop fastener
·
SK-604 Extra Long Handles
·
SK-652 Sling and Carabiner Float
SKEDCO
Water Flotation For Sked
Stretcher

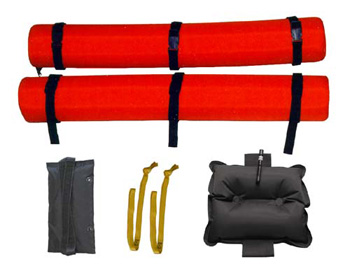

Sked Rigid Flotation System
Complete |
Skedco has added a new dimension in litter flotation by developing
two systems which enables the Sked Stretcher to float vertically. Vertical
flotation prevents the possibility of patient drowning due to capsizing. The
Sked Stretcher with Skedco flotation will not float face down. It is
self-righting when up-ended. Flotation of the Sked Stretcher is accomplished
with a pair of 5”(12.7cm) diameter Ethafoam logs and a chest pad also made of
Ethafoam. The Ethafoam floats provide approximately 56 lbs.(25.4kg) of
flotation. In order to make the Sked float vertically we use a 15 lb.(6.8kg)
ballast, made of lead shot in a nylon bag. The ballast is attached to the Sked
with nylon straps and Velcro. In order to lift the Sked from the water, Skedco
provides two extra-long webbing handles. This flotation is simple to use. An
experienced person can package a patient in water in as few as two minutes.
Weight of entire system is only 21 lbs.(9.5kg). Made in
Rigid System
Catalog
#SK600-GR Flotation System Complete - Dk. Green
Catalog
#SK600-OR Flotation System Complete - Orange
Catalog
#SK601 Ballast with Bag (replacement)
Catalog
#SK602-OR Chest Pad (replacement) - Orange
Catalog
#SK602-GR Chest Pad (replacement) - Dk. Green
Catalog
#SK603-GR Flotation Log with Cover and Straps (replacement) - Dk. Green
Catalog
#SK603-OR Flotation Log with Cover and Straps (replacement) -
Catalog
#SK604-OR Extra Long Handles Set of Two (replacement) - Yellow
Inflatable System
Catalog
#SK650-GR Complete Rapid Deployment Stretcher System - Dk. Green
Catalog
#SK650-OR Complete Rapid Deployment Stretcher System - Orange
Catalog
#SK651-GR Rapid Deployment Pack Only - Dark Green
Catalog
#SK651-OR Rapid Deployment Pack Only - Orange
Catalog
#SK652 Lift Sling Float Only
Catalog
#SK606 Inflatable Log Left
Catalog
#SK605 Inflatable Log Right
Catalog
#SK653 Replacement CO2 Refill Cartridge

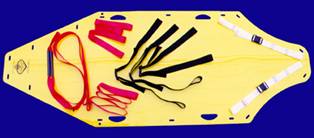

Skedco
Hazmat/ Decontaminable Sked
Stretcher
Product description |
|
Size |
|
Weight |
|
Material |
|
Temperature range |
|
System components |
|
This stretcher is designed for use in contaminated areas where it is difficult to maneuver because of the level "A" suits. It is easy to use and allows faster patient loading with less effort. Patients can be decontaminated while on the HMD Sked.
SK-250 Complete HMD Sked Rescue System with strap kit (Assembled and Rolled)
SK-250-P Complete HMD Sked Rescye System with strap kit (On Pallet)
SK-251 HMD Sked – body only
SK-252 HMD Strap Kit
SK-253 HMD Sked Rapid Deployment Case- yellow
SK-2510 Shuttle Sked Kit, in yellow bag
SK-2511 Shuttle Sked Rope Kits, in yellow bag
SK-2520 Complete Skedco/ Skyhook WMD/Haz-mat patient evacuation system
SK-2530 Skyhook Rope Winch System
SK-2531 Skyhook Rope Winch Only (w/tripod mount)
