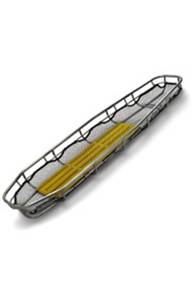

Traverse Titan Rescue Stretchers
Traverse
StratLoad Attachment Points
The patent-pending StratLoad™ attachment points for the Titan Stretchers allow
any size carabiner to be used to attach a lifting bridle while keeping both the
carabiners and the lifting bridle on the inside of the stretcher's top rail
(where it is protected from abrasion along cliff faces and building walls). The
StratLoad™ feature prevents cross gate and side loading of carabiners and
orients the direction of pull along the spine of the carabiner where it is
strongest. The stainless steel StratLoad™ is 1/4 thick with a full-round radius
on the inside edge, allowing a soft-attachment which is then protected by the
top railing. The Stratload comes standard on Traverse Titan Stretchers and is
available as an option on Titan Ti Stretchers.
Titan Ti Material: Titanium Width: 23 in (58cm) Length: 83 in (211 cm) Weight: 13 lbs (6 kg) Load Rating: 2,500 lbs (11kN) |
Titan Ti
Stretcher Material: Stainless Steel Width: 23 in (58cm) Length 83 in (211 cm) Weight: 31 lbs (14 kg) Load Rating: 2,500 lbs (11kN) |
Catalog #
726102 Titan Ti Stretcher (Titanium),
Tapered
726112 Titan Ti Stretcher (Titanium), w/
Attachment Points
726017 Titan Ti Stretcher (Titanium), Split
Apart
726117 Titan Ti Stretcher (Titanium), Split
Apart w/ Attachment Points
726100 Titan Stretcher (Stainless Steel),
Tapered
726101 Titan Stretcher (Stainless Steel),
Rectangular
726103 Titan Stretcher (Stainless Steel),
Tapered, Split Apart
726104 Titan Stretcher (Stainless Steel),
Rectangular, Split Apart
