Ascenders

Prices and Availabilty of All Items Are Subject to Change Without Notice

CMI PETZL


CMI


CMI Expedition Ascenders

Incorporates the most comfortable handgrip ever seen on an ascender. The ergonomic design cushions the hand and provides something substantial to hold on to. Other features include an easy to operate safety, dual tie in holes at the bottom, and an extra deep rope channel. The cam carries a lifetime wear-out guarantee. Extra large handgrip opening easily accommodates gloves or mittened hands. The Double-handled Expedition Ascender is also available and its two handles let both hands get in on the lifting action, making going up almost as easy as going down.

Expedition                  4000 lbs MBS             8 x 3.8 in         9.6 oz

Double Expedition      4000 lbs MBS             8.25 x 7.2 in    13 oz

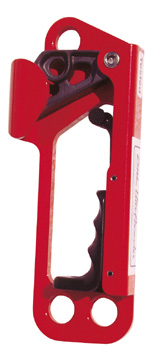

CMI Ultrascender Large

(Catalog #ULTAS01)

·         Sold in pairs, one right and one left

·         Toothed type cam

·         Color - Red

·         Molded hand grip

·         Weight 19oz. (543g) per pair

·         Length 7.4" (18.7cm)

·         Width 3" (7.6cm)

·         Breaking strength 5000 lbs. (2268kg)

·         Accepts ropes from 5/16" (8mm) to 1/2" (12.5mm)

·         Made in USA




CMI Ultrascender Small

(Catalog #ULTAS02)



·         Sold in pairs, one right and one left

·         Color - Red

·         Compact size, no handle

·         Weight 13oz. (371g) per pair

·         Length 5.12" (13cm)

·         Width 3" (7.6cm)

·         Breaking strength 4000 lbs. (1814kg)

·         Accepts ropes from 5/16" (8mm) to 1/2" (12.5mm)

·         Made in USA



RETURN TO TOP


PETZL

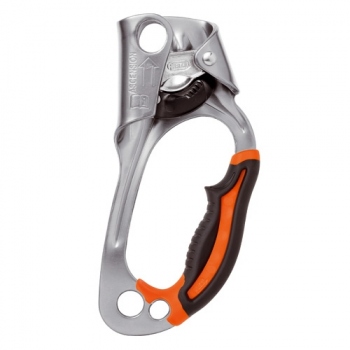

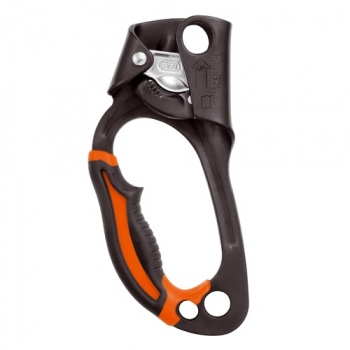

Ascension - Ergonomic handled ascender

(Catalog #B17WRA Right Hand, #B17WLA Left Hand)

  • Molded grip provides even greater comfort with a more ergonomically shaped handle. This new shape keeps your hand from sliding to the bottom of the frame each time you pull on the ASCENSION. The bi-material handle includes a rubber over molded grip increasing the comfort and your grip in wet or icy conditions.
  • Chrome-plated steel cam with angled teeth and self-cleaning slot securely grips the rope, even in muddy or icy conditions
  • Mono-frame construction eliminates weaknesses and keeps the ascender lightweight and durable for years of use
  • Multiple attachment points allow for different uses (e.g. self-belaying, haul systems, etc)
  • Anodized frames are color coded for easy identification (black -left / gray -right)
  • Safety catch prevents the cam from opening too far thus keeping the rope captured for added safety
  • 1 cm secondary hole at the bottom will accommodate a screw link for attaching aiders, slings, etc.
Specifications

Weight: 195 g
For use with ropes between 8 and 13 mm in diameter
Materials: aluminum frame, chrome-plated steel cam, rubber over molded plastic grip, nylon catch
Color:
- black frame with orange handle (left)
- gray frame with orange handle (right)
3-year guarantee
CE / UIAA

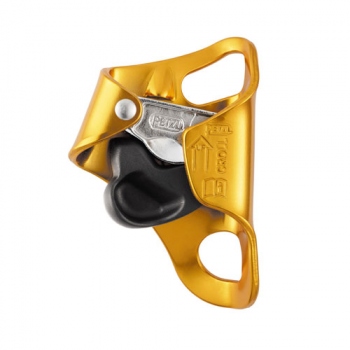

Croll - Chest Ascender

(Catalog #B16AAA)

When used with a chest strap and the ASCENSION or BASIC, the CROLL makes for a simple and efficient system for ascending fixed lines. The angled attachment hole keeps the device properly aligned on the chest.

  • Chrome-plated steel cam with angled teeth and self-cleaning slot securely grips the rope, even in muddy or icy conditions
  • The angled attachment hole keeps the device properly aligned on the chest for better efficiency in use
  • Upper hole is used to attach shoulder strap
  • Safety catch prevents the cam from opening too far thus keeping the rope captured for added safety.
Specifications

Weight: 130 g
For use with ropes between 8 and 13 mm in diameter
Principal materials: aluminum for the frame, chrome steel for the cam, nylon for the trigger
Color: yellow
3-year guarantee
CE / UIAA

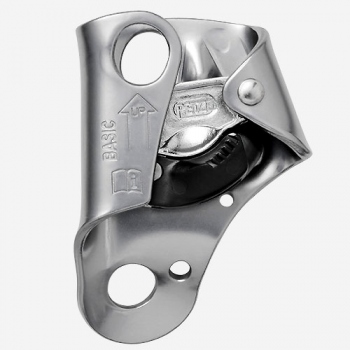

Basic Frame - Loaded Rope Clamp

(Catalog #B18)

  • Versatile: back-up in hauling system, self-belay or rope ascent
  • Toothed cam with self-cleaning slot optimizes performance under any conditions (e.g. frozen or dirty ropes)
  • Lower hole for connecting a lanyard
  • Upper hole through which a carabiner attaches the device to the rope (useful for back-up belays or hauling)
  • Compact and lightweight
Specifications

For single ropes between 8 and 13 mm in diameter
Individually tested
Weight: 135 g
CE EN 567

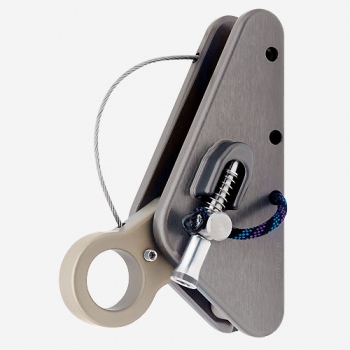

Rescucender - Cam-loaded rope clamp

(Catalog #B50)

  • Removable axle can be used to install or remove the clamp at any point on the rope
  • Locking pin: reduces the risk of undoing the system accidentally
Specifications

For single ropes between 9 and 13 mm in diameter
Individually tested
Weight: 250 g

CERTIFICATION
CE EN 567

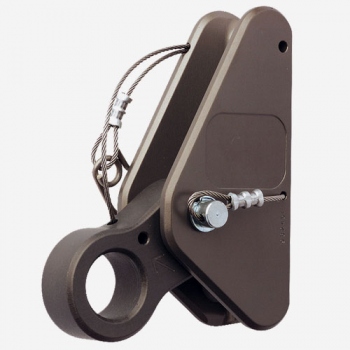

Macrocender Rope Grab - Cam loaded rope clamp for large diameter ropes

(Catalog #B51)

  • Removable axle can be used to install or remove the clamp at any point on the rope
  • Locking pin: reduces the risk of undoing the system accidentally
Specifications

For single ropes between 12 and 19 mm in diameter
Individually tested
Weight: 335 g

CERTIFICATION
CE EN 567




Microcender

Compact and Lightweight mobile rope clamp

(Catalog #B54)

·         Removable axle, so the rope clamp can be installed or removed anywhere on the rope.

·         Locking Pin: creates a very secure attachment to the rope

·         Locking pin and axle are attached to the body of the rope clamp to help prevent loss.

·         Compact and lightweight

·         For single ropes between 9 and 13mm in diameter

·         Three Year Guarantee

·         Made in France

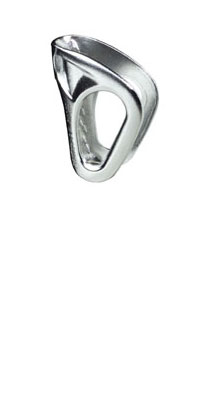

TIBLOC

Emergency rope clamp

(B01)

·         Weight: 1.4 oz. (39 g)

·         Emergency use rope grab for 1 rope

·         Accepts rope from 10-12 mm (1/2  max)

·         Smallest and lightest rope clamp

·         Multi-purpose: for ascending ropes or as a progress capture device in hauling systems

·         Trigger cam with teeth and cleaning slot: works even on dirty or icy ropes

·         Hole for keeper cord

·         For use with a locking carabiner with a round or oval cross section

·         Three Year Guarantee

·         Made in France



MICROGRAB

Mobile rope clamp for permanent installation on the rope

(B53)

·         Axle is bolted to the device to help prevent involuntary removal: to install, the rope must be passed through the device form the ends.

·         Compact and lightweight

·         For single ropes between 9 and 13 mm in diameter

·         Three Year Gurantee

·         Made in France

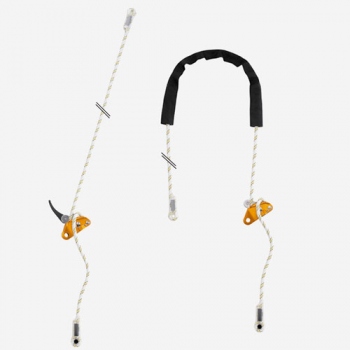

Grillion - Adjustable Lanyard for Work Positioning

(Catalog #L52A 002, L52A 003, L52A 004, L52A 005)

  • Lanyard with fine adjustment system for precise work positioning
  • Can be used in two ways:
    - double mode, on the harness lateral attachment points, to distribute the weight on the belt (user has weight on his feet): length is adjusted by pressing on the pivoting cam)
    - single mode on the harness ventral attachment point, to distribute weight between the waistbelt and the leg loops (user is suspended): length is adjusted by operating the handle while holding the free end of the lanyard
  • Removable protective sheath protects the rope from abrasive contact and favors smooth rope glide. The protection can be removed when the single lanyard technique is used, to bring the user closer to the anchor.
Specifications:

Available in several lengths:
- GRILLON (L52A 002): 2 m, 435 g
- GRILLON (L52A 003): 3 m, 515 g
- GRILLON (L52A 004): 4 m, 595 g
- GRILLON (L52A 005): 5 m, 675 g
CERTIFICATION:
CE EN 358

NOTE:
GRILLON lanyards can also be used to create adjustable anchors or horizontal lifelines; please see specific versions of GRILLON lanyards for these uses.

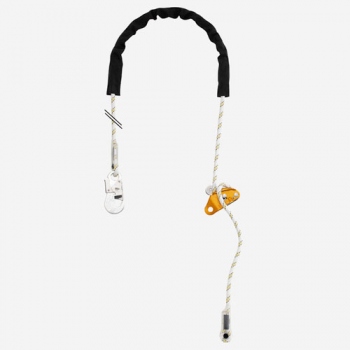

Grillion Hook - Adjustable Lanyard for Work Positioning

(Catalog #L52H 002, L52H 003, L52H 004, L52H 005)

  • Lanyard with fine adjustment system for precise work positioning
  • Can be used in two ways:
    - double mode, on the harness lateral attachment points, to distribute the weight on the belt (user has weight on his feet): length is adjusted by pressing on the pivoting cam)
    - single mode on the harness ventral attachment point, to distribute weight between the waistbelt and the leg loops (user is suspended): length is adjusted by operating the handle while holding the free end of the lanyard
  • Removable protective sheath protects the rope from abrasive contact and favors smooth rope glide. The protection can be removed when the single lanyard technique is used, to bring the user closer to the anchor.
Specifications:

Available in several lengths:
- GRILLON (L52H 002): 2 m, 435 g
- GRILLON (L52H 003): 3 m, 515 g
- GRILLON (L52H 004): 4 m, 595 g
- GRILLON (L52H 005): 5 m, 675 g
CERTIFICATION:
CE EN 358

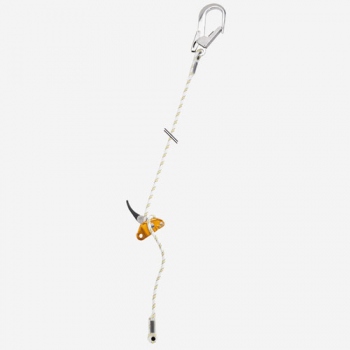

Grillion MGO - Adjustable work positioning lanyard with MGO large opening connector

(Catalog # L52M 003)

  • Lanyard with fine adjustment system for precise work positioning
  • Used in single mode on the harness ventral attachment point, to distribute weight between the waistbelt and the leg loops (user is suspended): length is adjusted by operating the handle while holding the free end of the lanyard
Specifications:

Available in one length:
- GRILLON (L52M 003): 3 m, 995 g

CERTIFICATION:
CE EN 358


RETURN TO TOP



Gibbs Klimair Mechanical Prusik

The Klimair is a bi-directional mechanical Prusik designed for use on ½ in. rope lanyards and flip lines. It features a 0.16 aluminum shell and a swiveling stainless steel eye. It can also be used for ascending and rigging applications.



The Klimair attaches to the rope using a split ring and clevis pin for a quick, yet secure attachment.

MBS: 5,000 lbf. (22kN). Weighs 4.7 oz (133g)

Item #340009





Please call us for more information
