Pulleys

2:1 Traveling Pulley

A-Simple 2:1

B-2:1 with Ratchet

C-2:1 Pulling Second Rope

This system is nothing more than a force multiplier turned around. One end of the line is attached to an anchor. The rope passes through a pulley and back in the direction of the anchor. The load is suspended from the pulley. The load is equally supported by both sides. When you pull up on the unanchored side you only need extend one half the force, but for twice the distance. Figure A portrays this in the simplest form. Note that this form is considered unsafe for live or critical loads.

Figure B is the preferred method for hauling a live or critical load. In this system we have added a ratchet cam. The ratchet cam is used to hold the load when sufficient force is not being exerted on the unanchored end.

Figure C shows how to use a 2:1 system to pull on a separate line. In this system we use an ascender (called the haul cam) to attach the traveling pulley to the load line. We place a second ascender (called the ratchet cam) below the haul cam. By placing the ratchet and haul cam on the load line the team can pull up the load line with the hauling system, set the weight on the ratchet cam, and then reset the haul cam to take another bite and haul up more of the load line. This same sequence is used with all other systems.

3:1 The Z-Rig

The z rig allows you to exert only one third the force for three times the distance. Notice that the z shape must be maintained otherwise it turns into a simple direction change and offers no mechanical advantages. As force is applied to the unanchored pulley it will move towards the anchored pulley until they meet. Set the ratchet cam by slightly slacking the hauling system behind the ratchet cam. Then reposition the haul cam by moving it towards the load. Repeat this procedure until the load reaches the desired level.

4:1 Piggyback Rig

The piggyback is nothing more than a 2:1 system hauling another 2:1 system for a total mechanical advantage of 4:1. To set up a pig: divide the haul system line into two legs by tying a figure 8 on a bight at the mid point. Attach the knot to a suitable anchor. Use one leg to set up a 2:1 system with the haul cam attached to the load line. The free end of this 2:1 portion is terminated at the second pulley by attaching it to the carabiner hole on

the pulley. The other leg is used to set the second 2:1 system through the pulley with the terminated line. A ratchet cam is added to allow the team

to reset the hauling system.

Ratchet Cams

A ratchet cam is used to hold the load while the haul cam is being repositioned. Do not consider the ratchet

cam to be a safety. Its sole purpose is to hold the load on a temporary basis. A ratchet cam may not hold

under shock or heavy loading. A potential problem is shock loading of the ratchet cam. This can occur as

the hauling team pulls the line through the system. An unanchored ratchet cam can move along with the

line, creating slack in the system (see Figures A & B). This slack can be the cause of a shock load to the

entire system. To prevent this from occurring a person, or shock cord can be used to prevent the cam from

moving as the line is hauled up as shown in Figure C.

Multi-Line Hauling System

This system is used to provide equal tension on two lines. Common uses are to pretension a dual line tyrolean traverse (highline) or to pull with equal force at several points on an object such as an overturned trailer that needs to be put back on its wheels. By adding additional anchored pulleys, traveling pulleys and ascenders this system can be adapted to pull on 3, 4 or more lines as needed.

Ascenders In Hauling Systems

Notice that the illustrations in this catalog show a number of different ascenders used as ratchet or haul cams. Mechanical ascenders or ascender hitches can be used to achieve the same end results. However, one must be aware that no system is 100% fail safe. Mechanical ascenders (Gibbs, Jumars, Petzls etc.) can cut the rope under high or shock loading. Ascender hitches have also been known to slip until the load comes to rest on a solid surface under the same conditions. There are no magic formulas one can give you that can tell you which type of ascender to use for any particular job. Do consider the manufacturers load ratings and recommendations when selecting mechanical ascenders. Temper this with training and practice before utilizing these techniques in the field.

See the Ascender section on page 2 for rope grab devices.

See Tripod/Confined Space Rescue section on page 135 for mechanical advantage systems.

SMC

Standard Duty Pulleys

SMC Standard Duty Pulleys

· Stainless steel cheeks

· 1/2”(12.5mm) rope maximum

· Breaking strength 6000 lbs.(2722kg)

· Swing side cheeks

· 2”(5.1cm) or 3”(7.7cm) aluminum sheaves

· Double pulleys have becket

· Top hole will accept 2 carabiners

· Made in USA

Cat#	Description	Bearing	Weight
150000	2” x 1/2”(5.1 x 1.3cm) Single	Oilite	8.6oz.(252g)
150500	2” x 1/2”(5.1 x 1.3cm) Single	Sealed Ball	8.6oz.(252g)
151000	3” x 1/2”(7.7 x 1.3cm) Single	Oilite	16.0oz.(470g)
155000	2” x 1/2”(5.1 x 1.3cm) Double	Oilite	16.2oz.(470g)

SMC

Heavy Duty Pulleys

SMC Heavy Duty Pulleys

· Stainless steel cheeks

· 5/8”(16mm) rope maximum

· Breaking strength 9000 lbs.(4082kg)

· Swing side cheeks

· 3”(7.7cm) or 4”(10.3cm) aluminum sheaves

· Double pulleys have becket

· Top hole will accept 2 carabiners

· Made in USA

Cat#	Description	Bearing	Weight
152000	4” x 5/8”(10.3 x 1.6cm) Single	Oilite	23oz.(675g)
152500	4” x 5/8”(10.3 x 1.6cm) Single	Sealed Ball	23oz.(675g)
152505	4” x 5/8”(10.3 x 1.6cm) Single	Sealed Ball	24oz.(686g)
157000	4” x 5/8”(10.3 x 1.6cm) Double	Oilite	40.3oz.(1.18kg)

Skedco Rescue Hauler

Designed to lift heavy rescue loads under demanding conditions, this double 3” pulley with integrated cam prevents accidental lowering and possible shock-loading of the rescue system. With the cam in the disengaged position, the Rescue Hauler functions as a double pulley. With cam engaged, the rope can travel in only one direction. Use the Rescue Hauler with the matching double 3” pulley to create a 4:1 mechanical advantage. Both products are anodized aluminum, red in color with one black sideplate. MBS 12,000 lbf (53.4 kN).

SK710 Skedco Rescue Hauler 10mm to 12.5mm 2.4 lbs

SK711 Skedco Double Pulley 10mm to 12.5mm 1.6 lbs

SK712 Skedco Double Pulley w/ Becket 10mm to 12.5mm 2 lbs

Skedco Micro Hauler

The Micro Hauler is a tiny but extremely strong and efficient version of the Rescue Hauler. MBS: 7,000 lbf. Length: 6”. Sheave diameter: 1”.

SK710M Skedco Micro Hauler, Double

SK712M Skedco Simple Double Pulley

SMC

Misc. Pulleys

147000	Swiftwater Pulley 4.0” x 3.0” x 1.34” (sheave 2”x1/2”) Accepts ropes up to 13mm	6oz (176g)
125500	Kootney HX Knot Passing Pulley 8.5” x 4.4” x 3”	28.4oz (805g)
159500	T.R. Pulley 3.045” x 1.75” x 0.905” Accepts ropes up to ½”	2.5oz (70.4g)
153000	Aluminum Micro PMP Single 3.75” x 2.55” x 1.12” (Sheave 1-3/8” x ½”) Accepts ropes up to 12.5mm.	3.7oz (109g)
152700	Aluminum 2” Prusik Minding Pulley-Single 1.89” x 3.97” x 1.37” Accepts ropes up to 13mm	6.3oz (185g)
158000	Aluminum 3” Prusik Minding Pulley-Single 5.85” x 4.17” x 1.37” (Sheave 3”x13mm) Accepts ropes up to 13mm	12.5oz (364g)
154000	Aluminum Micro PMP Double 4.65” x 2.55” x 1.81” (Sheave 1-3/8” x ½”) Accepts ropes up to 12.5mm	5.8oz (170.2g)
152800	Aluminum 2” Prusik Minding Pulley-Double 1.89” x 5.06” x 2.22” Accepts ropes up to 13mm	10.4oz (305g)
158500	Aluminum 3” Prusik Minding Pulley-Double 7.1” x 4.17” x 2.22” (Sheave 3” x 13mm) Accepts ropes up to 13mm	20oz (610.5g)
130500	Aluminum SMC/RA 2” Single-Ball Bearing 4.6” x 2.5” x 1.34” (Sheave 2” x ½”) Accepts ropes up to 13mm	6.3oz (185g)
159000	CR Pulley 2.9” x 1.7” x 1.34” (Sheave 1-1/4” x ½”) Accepts ropes up to 12.5mm	2.25oz (66g)
157500	Stainless Steel SMC/RA 4” Double – Ball Bearing 9.9” x 4.63” x 2.37” (Sheave 4” x 5/8”) Accepts ropes up to 16mm	40.3oz (1.18kg)

CMI

Standard Duty Pulleys

CMI Standard Duty Pulleys

· Aluminum cheeks

· 2 1/4”(5.8cm) diameter sheave

· Swing side cheeks

· Singles only

· Top hole will accept 2 carabiners

· 5/8”(16mm) rope maximum

· Rope course pulleys have steel sheaves. To specify steel sheaves, change the RP in the catalog number to RC.

· Made in USA

Cat#	Description	Sheave	Bearing	Breaking Strength	Weight
RP101	2 3/8” x 5/8”(6.1 x 1.6cm) Single	Celcon	Silicon	3,500 lbs.(1588kg)	6oz.(171g)
RP102	2 3/8” x 5/8”(6.1 x 1.6cm) Single	Aluminum	Oilite	5,000 lbs.(2268kg)	7oz.(200g)
RP103	2 3/8” x 5/8”(6.1 x 1.6cm) Single	Aluminum	Sealed Needle	5,000 lbs.(2268kg)	7oz.(200g)
RP104	2 3/8” x 5/8”(6.1 x 1.6cm) Single	Aluminum	Sealed Needle	10,000 lbs.(4536kg)	10oz.(286g)
RP111	2 3/8” x 5/8”(6.1 x 1.6cm) Single Double Ended	Aluminum	Oilite	9,500 lbs.(4310kg)	11oz.(320g)

CMI

Heavy Duty Pulleys

CMI Heavy Duty Pulleys

Stainless steel cheeks. 3”(7.7cm) or 4”(10.3cm) aluminum sheaves. Breaking strength: 16,000 lbs.(7258kg). Top hole accepts 2 carabiners. Swing side cheeks. Made in USA.

Cat#	Description	Bearing	Weight
RP105	3” x 5/8”(7.7 x 1.6cm) Single	Oilite	20oz.(571g)
RP106	3” x 5/8”(7.7 x 1.6cm) Single	Sealed Needle	20oz.(571g)
RP107	4” x 5/8”(10.3 x 1.6cm) Single	Oilite	27oz.(771g)
RP108	4” x 5/8”(10.3 x 1.6cm) Single	Sealed Needle	27oz.(771g)

CMC Rescue MPD Pulley/ Rescue Belay/ Descender

· Variable-friction descent control device for rescue systems and rappels

· High efficiency pulley with an integral rope-locking mechanism (ratchet) for a haul system

· Rescue belay device
Developed during four years of research & testing, the MPD is the next major advance in technical hardware for professional rope rescuers - a multi-purpose device that performs all functions for main lines, belay/safety lines, tag lines and hoisting lines. The MPD can be used to tension high lines and guiding lines. Training and on-scene rigging can be greatly simplified by having a single device. Rescue system changeover from a lowering system to a raising system becomes faster and safer by eliminating the need to switch out and replace hardware.

· Certified to NFPA 1983 - General Use

· Meets BCCTR Rescue Belay Competency Criteria

· Release knob has "anti-panic" locking

· Becket allows rigging cleaner and more efficient pulley systems

· Allows the main line and belay line rigging to be mirror images

· Functions as lowering brake and as ratcheting pulley for raising

· Rapid conversion to a retrieval line makes the MPD ideal for confined space operations

Weighs 3 lbs (1.4 kg)

Item #333000

CMC ProSeries Digital Pulley

UL Classified to NFPA 1983-General Use. Knowing just how much rope you have out can be a significant help in planning an evacuation. What if you are using a capstan winch for pulling the rope and would like to keep a constant speed? The CMC ProSeries Digital Pulley can eliminate the usual, very rough estimate of the distance to the patient. While not every rescuer needs the system data provided by the Digital Pulley, it can be integrated to make the system safer and more efficient. The pulley has an integral swivel, keeping the digital displays visible. The pulley measures distance in feet or meters and the speed in ft./sec or m/sec. The large displays are easy to read and the distance display remains on until reset. The on/off button is recessed. Battery life: 1-2 years. The CMC ProSeries Swivel Pulley has the same hardware features as the Digital, but without the electronics. Includes:

Sealed ball bearing for maximum efficiency
Long-life lithium battery
Side plate rotates to open
Swivel aligns pulley with load

Digital Single Red #332000 1 lb. 5 oz.

Swivel Single Red/Blue #332010 1 lb. 4 oz.

CMC Rescue S/S Swivel Pulley

UL Classified to NFPA 1983- General Use. This dual-purpose pulley is ideal as a change of direction on high anchor points or tripods. The stainless steel sheave can be used with steel cable or rope. By combining the pulley and swivel, the overall length of the hardware is minimized. The proprietary pivoting sideplate allows loading of the rope or cable while the pulley is still attached to the anchor. Sealed ball bearings for high performance.

#300431 2 x ½ in. Bronze/Blue 11.3 oz

CMC ProTech Pulleys

UL Classified to NFPA 1983 – Light Use. The choice for anyone that needs a super light, high strength pulley such as for mountain rescue, ski patrol, tower work, and swiftwater rescue. By machining the sideplates, the thickness of the metal can be varied to maximize the “strength to weight” ratio, a process that cannot be done with the traditional bent metal sideplates. The unique axle assembly allows a smooth sideplate that will not catch on the surface or other hardware. The aluminum sheave is mounted on sealed ball bearings.

#300501 1x7/16 in. Single Sand/Silver 3.3 oz

#300502 1x7/16 in. Double Sand/Silver 5.6 oz

CMI

Micro Pulleys

CMI Micro Pulley

Designed for hard use, with 7075-T6 aluminum sideplates and axle for unparalleled strength. Only 2 5/8”(6.7cm) in diameter, they accommodate ropes up to 7/16”(11mm). Strength: 6000 lbs.(2722kg).

Catalog #	Description	Sheave	Weight
RP109	Climber, Single	Nylon	1.8oz.(51g)
RP110	Rescue, Single	Aluminum	2.1oz.(60g)

Petzl/Rock Exotica

Aztek Compact 4:1 Pulley System

Rock Exotica Compete Aztek System

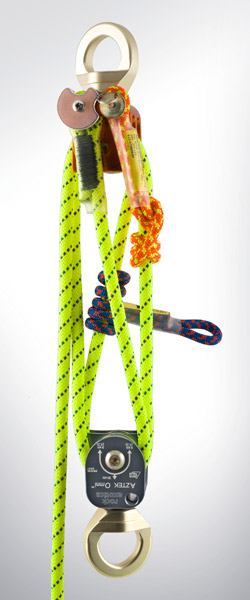

This very versatile pulley system can be used for pick off, travel restrict, adjustable directional, high directional guyline, high angle attendant tether, high angle litter scoop, load release hitch, and much more. The system includes 2 pulleys, 1 pin, and 1 cover. Weight: 15.4 oz (436g). Breaking Strength (Each Pulley): 2 x 9kN x 2 = 36kN. Working Load: 2 x 2kN x 2 = 8kN. Max Rope Diameter: 8mm. Sheave Diameter: 1.0”(25mm)

Catalog #P41Set Rock Exotica Aztek Compact 4:1 Pulley System

Catalog #P41Set-B Rock Exotica Aztek Compact 4:1 Pulley System (Tactical Black)

Catalog #P41Cover Rock Exotica P41 Rope Cover

Catalog #P41Cover-B Rock Exotica P41 Rope Cover (Tactical Black)

Catalog #P41PIN Rock Exotica Aztek ¼” Quick Release Pin

Catalog #P41Bag Rock Exotica Aztek Bag w/ Waist Strap

Catalog #P41Rope Exotica Aztek Rope Set (50’ of 8mm 2-6mm Ratchet Loops, 1-6mm Travel Resistant Loop)

Catalog #P41Rope-B Exotica Aztek Rope Set (50’ of 8mm 2-6mm Ratchet Loops, 1-6mm Travel Resistant Loop) (Tactical Black)

Omni-Block 1.1 Inch

Petzl Rescue Pulley

The Omni-Block combines a pulley with a swivel and offers tremendous advantages. It can replace a conventional pulley, carabiner & swivel and is lighter, less expensive and saves valuable vertical space. It also allows installing/removing the rope while the pulley is still anchored, which prevents dropping it & is often easier when rigging mechanical advantage systems. It does require that the user understand how it works and takes responsibility for making sure the sideplates are closed & locked.

Specifications:

Weight :5.1 oz (145 gm)
Height: 4.4” (112 mm)
Width: 2” (51 mm)
Breaking Strength: 27kN
Working Load: 5kN
Max Rope Diameter: 13 mm
Sheave Diameter: 1.1” (28 mm)

Catalog #P54 Rock Exotica Omni-Block 1.1

Catalog #P54B Rock Exotica Omni-Block 1.1 (Black)

Omni-Block 1.5 Inch

Petzl Rescue Pulley

Specifications:

Weight: 9.2 oz (260 gm)
Breaking Strength: 2 x 18 kN=36 kN
Working Load: 2 x 4kN=8 kN
Max Rope Diameter: 13 mm
Sheave Diameter:
1.5” (38 mm)

Catalog #P51 Rock Exotica Omni-Block 1.5

Catalog #P51B Rock Exotica Omni-Block 1.5 (Black)

Omni-Block 1.5 Inch Double

Petzl Rescue Pulley

Specifications:

Weight: 14.5 oz (411 gm)
Breaking Strength: 2 x 9 kN x 2=36 kN
Working Load: 2 x 2 kN x 2=8 kN
Max Rope Diameter: 13 mm
Sheave Diameter: 1.5” (38 mm)

Catalog #P51D Rock Exotica Omni-Block 1.5 Double

Catalog #P51D-B Rock Exotica Omni-Block 1.5 Double (Black)

Omni-Block 1.5 Inch Single-Steel Sheave

Petzl Rescue Pulley

Specifications:

Weight: 10.7 oz (303 gm)
Breaking Strength: 2 x 18 kN=36 kN
Working Load: 2 x 4kN=8 kN
Max Rope Diameter: 13 mm
Sheave Diameter: 1.5” (38 mm)

Catalog #P51SS Rock Exotica Omni-Block 1.5 Single-Steel Sheave

Catalog #P51SS-B Rock Exotica Omni-Block 1.5 Single-Steel Sheave (Black)

Omni-Block 1.5 Inch Shackle Top

Petzl Rescue Pulley

Specifications:

Weight: 10.7 oz (303 gm)
Breaking Strength: 2 x 18 kN=36 kN
Working Load: 2 x 4kN=8 kN
Max Rope Diameter: 13 mm
Sheave Diameter: 1.5” (38 mm)

Catalog #P51SH Rock Exotica Omni-Block 1.5 Shackle Top

Catalog #P51SH-B Rock Exotica Omni-Block 1.5 Shackle Top (Black)

Omni-Block 2.0 Inch

Petzl Rescue Pulley

Specifications:

Weight: 12.3 oz (348 gm)
Breaking Strength: 2 x 18 kN=36 kN
Working Load: 2 x 4kN=8 kN
Max Rope Diameter: 13 mm
Sheave Diameter: 2.0” (51 mm)

Catalog #P53 Rock Exotica Omni-Block 2.0

Catalog #P53-B Rock Exotica Omni-Block 2.0 (Black)

Omni-Block 2.0 Inch w/ One-way Sheave

Petzl Rescue Pulley

Specifications:

Weight: 12.3 oz (348 gm)
Breaking Strength: 2 x 18 kN=36 kN
Working Load: 2 x 4kN=8 kN
Max Rope Diameter: 13 mm
Sheave Diameter: 2.0” (51 mm)

Specifications:

Catalog #P53OW Rock Exotica Omni-Block 2.0 One-way Sheave

Catalog #P53OW-B Rock Exotica Omni-Block 2.0 One-way Sheave (Black)

Rescue Pulley

Petzl Rescue Pulley

The most advanced rescue pulley made today. The triangular top hole will accept three carabiners and the aluminum aerospace alloy sideplates give a strength of 8000 lbs.(3629kg), while keeping weight low at only 6.2oz.(177g). Petzl’s exclusive design utilizes a special machined axle/nut that is held in place by a bolt with a full 1 inch(2.6cm) thread engagement. Tread diameter of the sheave is 1.5 inches(3.8cm)[outside diameter of 2 inches(5.1cm)]. Available with sealed ball bearing only. Color: purple and blue. Made in USA.

Rock Exotica manufacturers the same pulley, with an oilite bushing. Color: blue and red.

Catalog #P50 Petzl Sealed Ball Rescue Pulley

Catalog #302080 Rock Exotica Oilite Rescue Pulley

RSI

Triple Sheave Pulley

RSI Triple Sheave Pulley

A 4”(10.3cm) triple sheave pulley with rotating sideplates. Designed for ropes through 5/8”(16mm) diameter. Can be reaved at any point on the line. 5:1 triple over double block and tackle system possible when used in conjunction with a double sheave pulley with becket. High strength alloy aluminum construction. Oilite bushing. Triple carabiner rigging point. Exceeds NFPA, ANSI and OSHA specifications. Minimum tensile strength: 15,000 lbs.(6804kg). Pitch diameter: 3.5”(9cm). Color: gold. Weight 2.5lbs.(1.1kg).

Catalog #610034 RSI Triple Sheave Pulley

Utility Pulley

Great for hauling gear. This light unit has a perma-lube nylon sheave turning on a 1/4”(6.4mm) aircraft bolt. Accepts rope up to 7/16”(11mm) in diameter. Breaking strength: 3000 lbs.(1360kg). Color: blue. Weight 1.7oz.(49g). Not intended for life-supporting situations.

Catalog #UP Utility Pulley

SMC

Knot Passing Pulley

SMC Knot Passing Pulley

The Knot Passing Pulley has been re-designed based upon recommendations from the field. The sheave has been lowered to give more volume to accommodate larger knots and to increase stability when the pulley is being used as an edge roller. The carabiner hole has been enlarged to accept eight 1/2”(12.5mm) diameter carabiners. The sideplates are made from heat treated aluminum and pins have been added to lock off the sheave so a high strength tie off can be made if desired. This pulley uses rotating sideplates, and has oilite bushings that allow higher working loads on sheaves. This pulley offers the necessary size, strength and versatility to perform in a wide variety of rescue operations. Overall size is 10.6” x 6”(27 x 15cm) wide by 3.7”(9.5cm) thick. Weight 3.3 lbs.(1.5kg).

· Breaking strength 11,000 lbs.(4990kg).

· Passes 1/2”(12.5mm) rope with a knot

· Gold anodized finish

· Made in USA

Catalog #121500 Knot Passing Pulley

Rock-N-Rescue

Knot Passing Carriage

Our KPC looks a lot like the other Canadian carriage with the exception that it has two extra carabiner clip-in holes at the bottom. It has quick-pins to lock the wheel for use as a high strength tie off. The Knot Passing Carriage features a groove in the sheave wheel to keep ropes in the center of the unit. Weight 60oz.(1.7kg). Made in USA.

Catalog #WKPC Knot Passing Carriage

Rock Exotica

Kootenay Carriage

The Kootenay Carriage is a large knot passing pulley in which the sheave can be locked in place. The large diameter perlon sheave will easily pass a double fisherman’s knot in 1/2”(12.5mm) rope. The cheeks (sideplates) have four large holes for attaching tag lines when used in a highline. By inserting a pin the sheave can be locked in place so the rope can be wrapped around it for a full strength tie off. Breaking strength 9000 lbs. (4082kg). Made in USA.

Catalog #KC Kootenay Carriage

Rock Exotica

Prusik Minding Pulley

This handy tool is designed for applications where the user wants to use Prusiks instead of a mechanical cam, such as in place of a camming pulley. The squared off bottom and narrow width are engineered to work with 8mm Prusik slings. 2”(5.1cm) sheave will accept ropes up to 1/2”(12.5mm) diameter. The top hole will accept three rescue carabiners. Breaking strength 9000 lbs.(4082kg). Made in USA.

Catalog #302030 Prusik Minding Pulley

Rock Exotica

Mini Prusik Minding Pulley

A smaller version of the original. The shape of this pulley allows the use of prusik hitches as ratchets or as a belay during the raising of rescue loads. It features an aluminum sheave with sealed ball bearings. The tread diameter is 1”(2.6cm), and it accommodates rope up to 7/16”(11mm). Strength: 4000 lbs.(1814kg). Weight 2oz.(57g).

Catalog # 302170 Mini Prusik Minding Pulley

RSI

Rigging Pulley

RSI Rigging Pulley

The three separate rigging holes provide unlimited opportunities. The triangular top rigging hole accepts multiple carabiners. The other holes allow ascenders, etc. to be suspended below the pulley. The tread diameter is 1.9”(4.9cm). Accommodates rope up to 1/2”(12.5mm). Strength: 8000 lbs.(3629kg). Weight 12oz.(343g).

Catalog #610127 RSI Rigging Pulley

Double Rope Rescuemate

This ingenious device combines a 2.5”(60mm) double sheave pulley with an ascender cam. It is this cam that acts as the fall arrest mechanism holding the load between hauling operations. If a conventional pulley is required the cam can be disengaged allowing the rope to flow freely, this operation can be done quickly and is easy to reverse. Unlike sealed units, the Rescuemate can be maintained or re-rigged in the field and it has no hidden internal mechanisms to malfunction. The pivoting side plates on the pulley allows the user to put it on the rope at any point. It is designed to lift or lower, life or load. With the addition of extra pulleys you can increase the mechanical advantage on the Rescuemate as required. It will accommodate ropes from 5/16” to 5/8”(8 to 16mm) in diameter. Maximum load at cam on a 1:1- 1985 lbs.(900kg). Safe working load at cam on a 1:1- 440 lbs.(200kg). Weight 28oz.(795g).

Catalog #RM12 Double Rope Rescuemate

Rescuemate Pack

The Rescuemate Pack is a pre-rigged/pre-packaged 4:1 mechanical advantage lifting-lowering system using the Double Rope Rescuemate pulley. It is designed to lift and lower live loads, and may be used for rescue or entry into confined spaces. All components used in the Rescuemate Pack exceed the current NFPA, ANSI and OSHA requirements. No more fumbling about looking for parts to build a mechanical advantage system and no more scratching your head trying to remember how to assemble the parts. Thanks to the 4:1 mechanical advantage, it is easy to lift a 2 person load. The Rescuemate is rigged with 1/2”(12.5mm)

NFPA two person rated rope. The maximum safe working load at the load end of the system is 1760 lbs.(800kg) [440 lbs.(200kg) at the Rescuemate cam].

Please note Rescuemate Packs can be custom tailored to fit your specific needs. Hard cases are available. The following models are available:

Rescuemate 25 Pack: 25 feet(7.6m) of lift from the top, 20 feet(6.1m) of lift from the bottom. 25 Pack contents: 1 Rescuemate, 100’(30.4m) of 1/2”(12.5mm)

NFPA two person rope with thimble, 1 double sheave pulley, 2 large locking D steel carabiners, 1 oval screw link, and 1 storage bag, all pre-assembled. Total

weight: 13 lbs.(5.9kg).

Rescuemate 50 Pack: 50 feet(15.2m) of lift from the top, 40 feet(12.2m) of lift from the bottom, 50 Pack contents: 1 Rescuemate, 200’(61m) of 1/2”(12.5mm)

NFPA two person rope with thimble, 1 double sheave pulley, 2 large locking D carabiners, 1 oval screw link, and 1 storage bag, all pre-assembled. Total

Weight: 20.5 lbs.(9.3kg).

Catalog #RESCUE-25 Rescuemate 25 Pack

Catalog #RESCUE-50 Rescuemate 50 Pack

HAWILL'S WEB CATALOG

Pulleys Prices and Availability of All Items Are Subject to Change Without Notice

2:1 Traveling Pulley

3:1 The Z-Rig

4:1 Piggyback Rig

Ratchet Cams

Multi-Line Hauling System

Ascenders In Hauling Systems

Pulleys
Prices and Availability of All Items Are Subject to Change Without Notice
